1. This granulating Line is mainly designed for processing PE/PP rigid flake or waste film flake. XPS, EPS, ABS and so on.
2. We can use single stage and double stage granulating line according to materials.
3. For screw L/D varies according to the material condition, for example, rigid material or film flake.
4. This production line can also be equipped with metal detectors, to ensure the quality of the products.

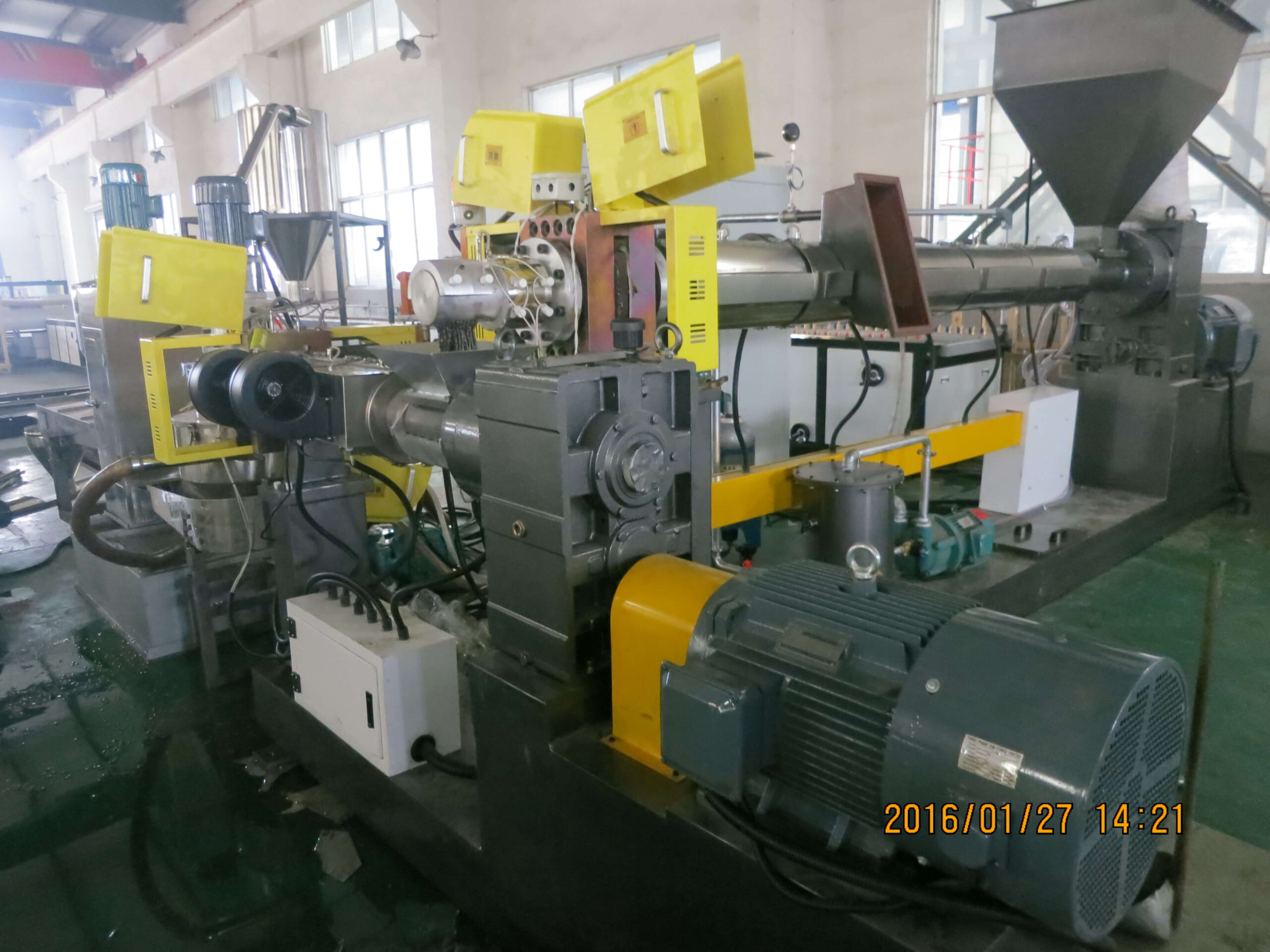

New Type Vertical Force Waste Plastic Granules Machine
Model: SJ100/30 SJ120/30 SJ130/30 SJ150/30 SJ160/30
Brand: Matrix Extrusion Technik
Code: 84772010
Specifications
| Extruder | Screw diameter(mm) | Main power(KW) | Capacity(kg/h) |
| SJ90/30 | 90 | 37 | 50-100 |
| SJ100/30 | 100 | 45 | 100-150 |
| SJ120/30 | 120 | 55 | 150-200 |
| SJ120/30 | 120 | 75-90 | 200-300 |
| SJ130/30 | 130 | 90-110 | 300-400 |
| SJ150/30 | 150 | 132 | 400-500 |
| SJ180/30 | 180 | 185 | 500-600 |
| SJ200/30 | 200 | 250 | 700-800 |
Applications
1. PE/HDPE/LDPE, PP rigid flake or waste film.
2. PS,HIPS,GIPS materials
Related products
-
PP Non-Woven Recycle Granules Pelletizing Machine
-
EVA Foam Pelletizing Line
-

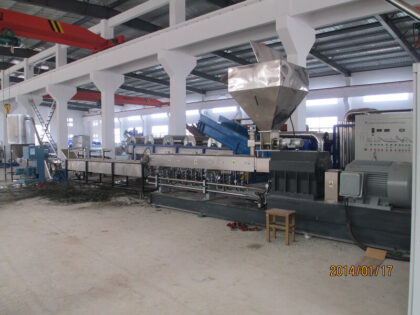

PET Granulator
