WPC profile is a new building and furnishing materials from PVC, PP, PE, plastics and mixed a variety of plant fibers, extrusion vacuum sizing made for drilling, planing, nailing, sawing, bonding , printing and other wood construction methods; for green, waterproof, moisture, corrosion, mildew, no deformation, flame retardant and recyclable.

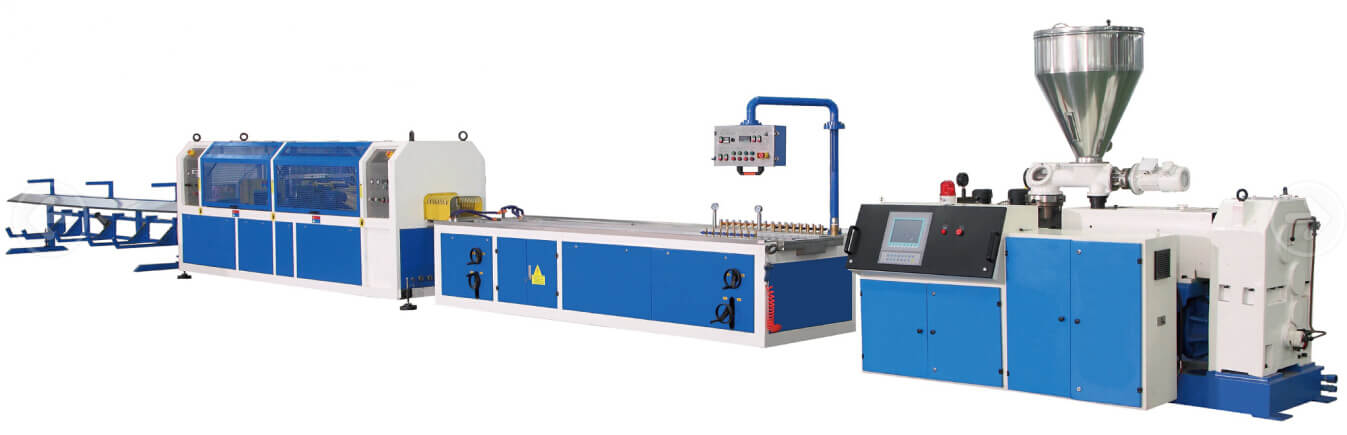

PE PP WPC Profile Extrusion Line
Model: SJSZ65/132 SJSZ80/156
Brand: Matrix Extrusion Technik
Code: 84772090
Specifications
Main machine Specifications:
| Machine \ Model | SJSZ65/132 | SJSZ80/156 |
| Screw diameter (mm) | Φ65/132 | Φ80/156 |
| Max speed (r/min) | 39.1 | 37.7 |
| Main motor power (KW) | 37 | 55 |
| Heating power (KW) | 24 | 36 |
| Center height (mm) | 1000 | 1000 |
| Products | Outdoor PP PE profile | |
| Heating and Cooling | Electric heating，Air cooling | |
Auxiliary machine specifications
| Auxiliary Machine \ Model | YF300 | YF400 |
| Max cutting width (mm) | 300 | 400 |
| Cutting power (KW) | 2.2 | 2.2 |
| Cooling water capacity (Kg/h) | 6 | 9 |
| Compressed air pressure (mpa) | 0.6 | 0.6 |
Applications

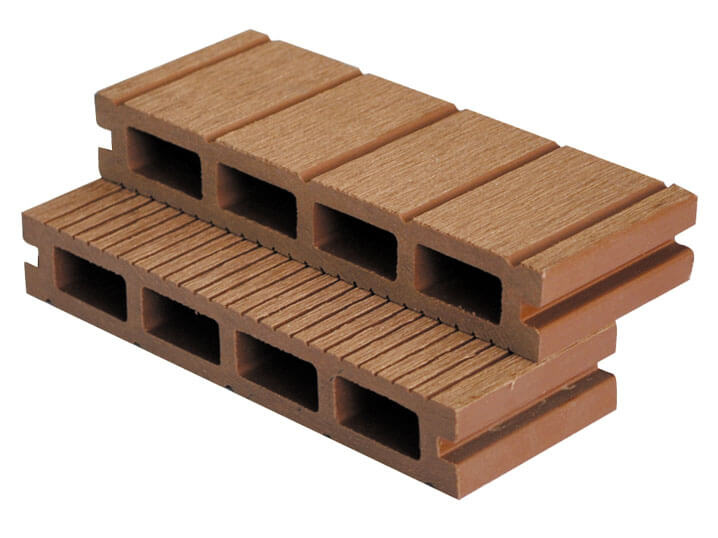

Mainly used in processing Square landscape wood, imitation wood and other outdoor garden construction WPC profiles.
Floor, rails, trays, boxes, wall panels, doors and windows sets, baseboard and other fields.
