1. Double station hydraulic exchange net
2. New designed gear box and transmission system for high torque
3. Screw design: parallel double-screw
4. Automatic temperature control
5. Non-pollution

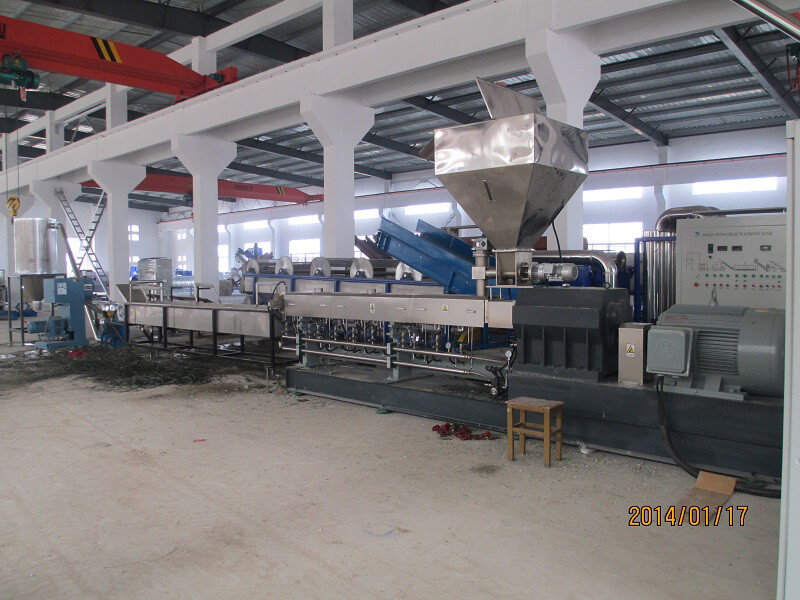

PET Granulator
Model: SHJ26-SHJ132
Brand: Matrix Extrusion Technik
Code: 84772010
Specifications
| Model | (Screw Diameter)mm | L/D | (Driving Motor)KW | (Screw Speed) rpm | (Output) Kg/h |
| SHJ26 | 26 | 28-56 | 5.5/7.5 | 600 | 30-May |
| SHJ36 | 36 | 28-56 | 15/18.5 | 600 | 30-80 |
| SHJ52 | 52 | 28-56 | 45/55 | 500 | 80-250 |
| SHJ60 | 60 | 28-56 | 55 | 400/500 | 150-300 |
| SHJ62 | 62 | 28-56 | 55/75 | 400/500 | 200-300 |
| SHJ62A | 62 | 28-56 | 75/90 | 400/500/600 | 300-450 |
| SHJ72 | 72 | 28-56 | 90/110 | 400/500 | 300-450 |
| SHJ72A | 72 | 28-56 | 132/160 | 400/500/600 | 400-700 |
| SHJ82 | 82 | 28-56 | 185/250 | 400/500 | 800-1000 |
| SHJ92 | 92 | 28-56 | 250/350 | 400 | 1000-1500 |
| SHJ132 | 132 | 28-56 | 500/600 | 300 | 1500-2000 |
Applications

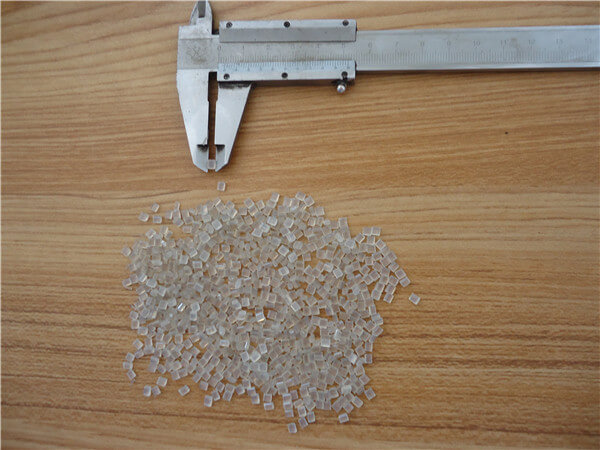

1. PET waste flakes granulation field.
2. Masterbatch
3. Plastics modification
4. Fiber glass reinforcement
5. Powder coating and toners, etc
