PVC corrugated roof tile extrusion line composes of twin conical screws extruder, and corresponding calibrating machine, haul-off and cutting machine.
Advantages:
Environment: safe and environmental without PVC component
Weariness: strength anti-weariness and long service time
Non-slip: Safety because of non-slip
Elasticity: Permanent elasticity makes a good feeling for feet
Sound absorption: Low sound of the feet
Flame retardant: flooring surface can be kept from cigarette burning.
Clean: Easy to clear and maintenance

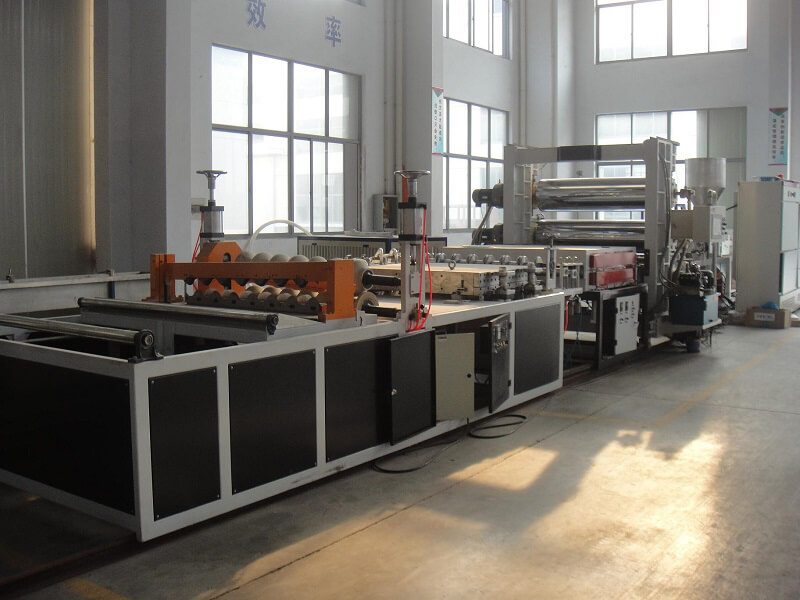

PVC Corrugated Roof Tile Extrusion Line
Model: SJZS65/80 SJZS80/92
Brand: Matrix Extrusion Technik
Code: 84772090
Specifications
| Model | SJZS65/80,SJZS80/92 |
| Max. profile width (mm) | 840-1450mm |
| Extruder | SJZS65/80,SJZS80/92 |
| Thickness(mm) | 0.8-3mm |
| Processed material | PVC, PET, PC |
| Total power(KW) | 110kw |
| Application | wave plate trapezia shaped plate |
| Extrusion capacity(kg/h) | 250-650kg/hr |
| Total length(m) | 25m |
| Center height(mm) | 1000mm |
Applications
widely used in the garden style factory, tourist scenic spots, pavilions, hotels, family buildings. etc.
