This production line is designed according to international latest technology, mixed PVC with plant fiber symmetrically. It adopts high-efficiency conical double-screw extruder with forcible cooling system to extrude and form. The wood plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in wide door, partition panel, construction template, base plate of container, furniture panel, etc.

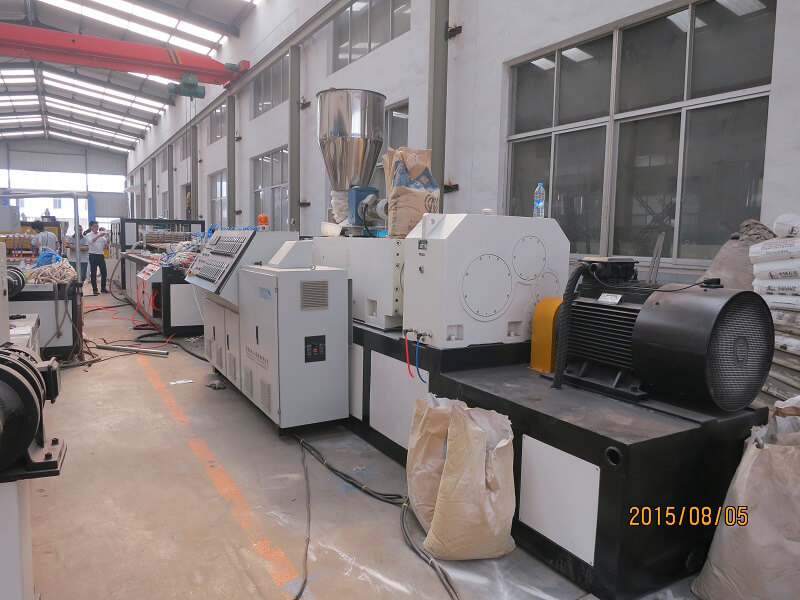

PVC WPC Door Board Extrusion Line
Model: SJSZ80/156 SJSZ92/188
Brand: Matrix Extrusion Technik
Code: 84772090
Specifications
| Model | SJSZ80/156 | SJSZ92/188 |
| Screw dia. | Φ80/Φ156 | Φ92/Φ188 |
| Screw quantity(pcs) | 2 | 2 |
| Screw speed (r/min) | Jan-38 | 1-32.9 |
| Main extruder power(KW) | 55 | 110 |
| Heating power (approx)( KW) | 36 | 78 |
| Extrusion output(kg/h) | 200-400 | 300-600 |
Applications

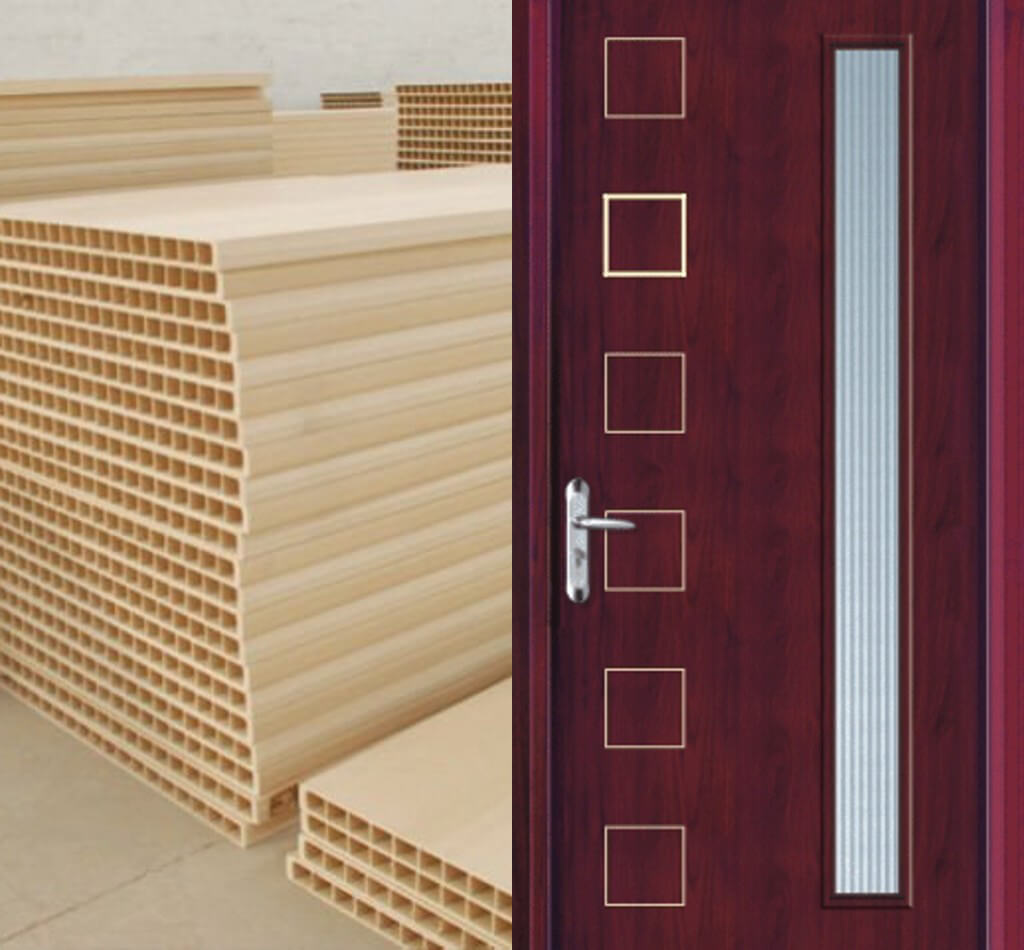

widely used in wide door, wall panels, building templates, container floor, doors and other home improvement packages
