BRL-LN series mixer units are widely used for mixing, drying, coloring for all kinds of resin such as PVC, PP, PE. They can also be used for drying and devolatilization of engineering plastics, like ABS, polycarbonate etc., and mixing of phenolic resin.
This unit is composed of hot mixer and cooling mixer, the material from hot mixer will enter in the cooling mixer automatically, so it can eliminate gas and prevent caking.

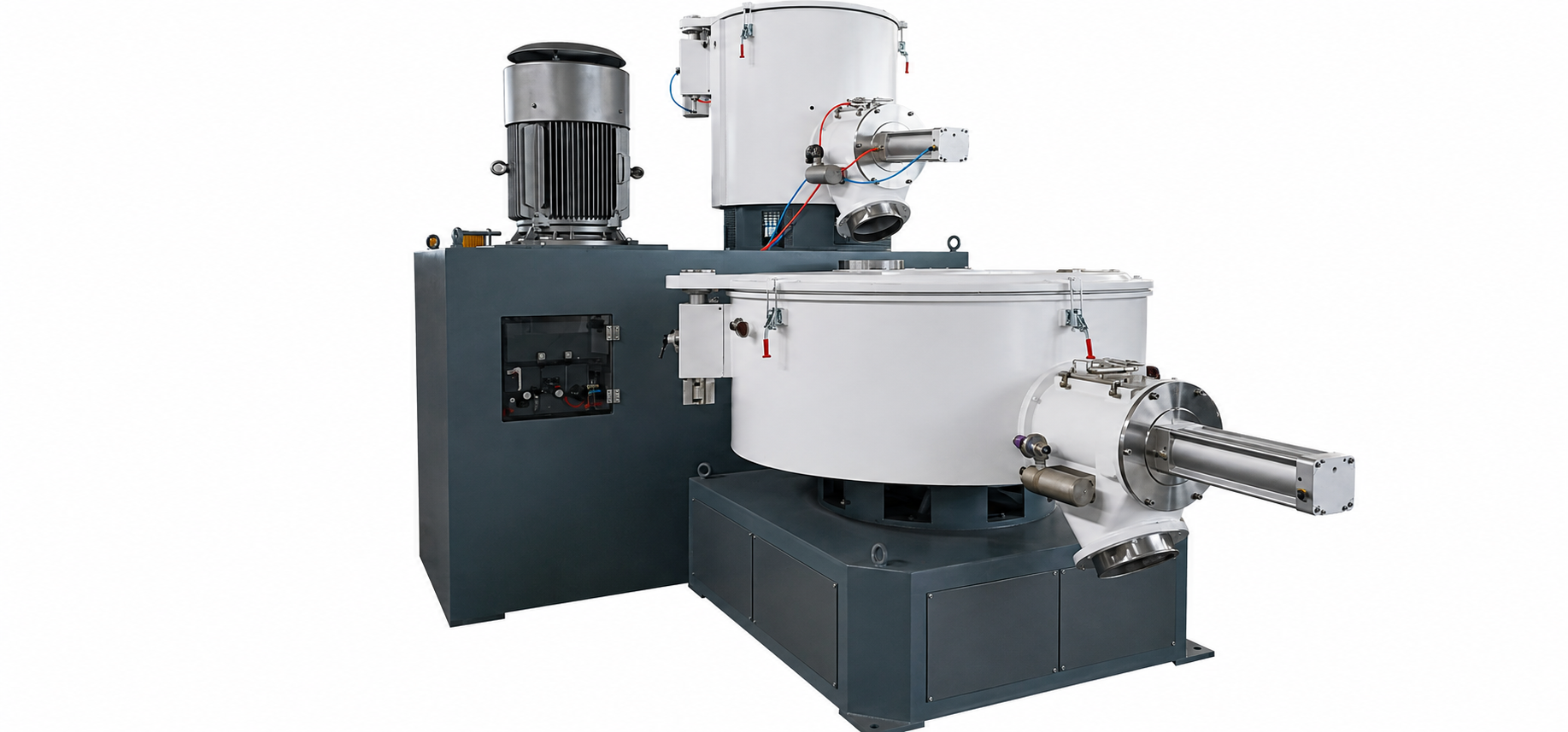

MET Series Vertical Mixing Unit
Specifications
| MET Series Vertical Mixing Unit | Heat/cool | Heat/cool | Heat/cool | Heat/cool |
|---|---|---|---|---|
| Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1250 |
| Effective capacity(L) | 65/130 | 150/320 | 225/380 | 330/750 |
| Stirring speed(rpm) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/70 |
| Mixing time | 8-12 | 8-12 | 8-12 | 8-12 |
| Motor power(kw) | 14/22/7.5 | 30/42/7.5 | 40/55/11 | 55/75/15 |
| Output(kg/h) | 165 | 330 | 495 | 825 |
